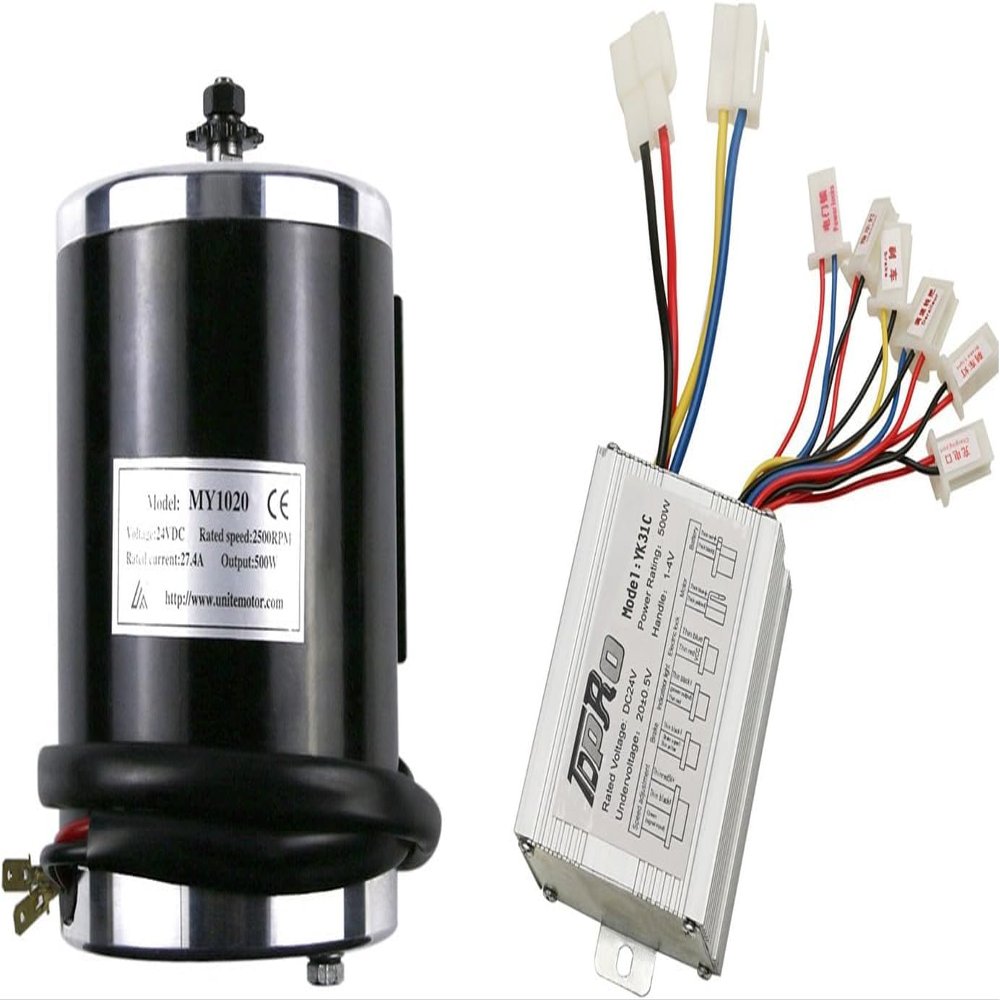

YC Yier 500W 24V DC Brush Electric Motor MY1020 with Speed Controller 2500RPM for DIY Scooter E Bike Go Kart Electric Bicycle Tricycle 4 Wheelers Razor Quad Dirt Bike ATV

Description

• Type of Motor: DC, Brush; Sprocket: 11 teeth for 25H chain, Horsepower: 0.68HP
• Rated torque: 1.79N.m; Output: 500W; Rated speed: 2400RPM
• Rated voltage: 24V DC; Rated current: 27.4A; No-load current: 2.8A
• Application: This electric scooter motor is widely used in Electric Bike Scooter Go-kart Lawn Mower Tricycle Mini Bike Bicycle etc using a 500W motor
• Great adaptability, capable of rotation in either the clockwise or counterclockwise direction
• Package includes: 1x Motor, 1x controller

Motor:
Output: 500W
Rated speed: 2400-2600 RPM
Rated voltage: 24V DC
Rated current: 27.41A
No-load current: 2.8A
Peak efficiency at 24V: 80 percent
Reversible: (w/ polarity swap)
Sprocket11 tooth sprocket for #25H chain

Controller:
Rated voltage: 24V DC
Conversion efficency: 95%
Under Voltage Protection: 200.5V
Speed regulator (throttle): 1-4 V

Controller Wiring:
This controller has 8 connectors, compatible with many 24V bikes with up to 350W motors
1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)
These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.
