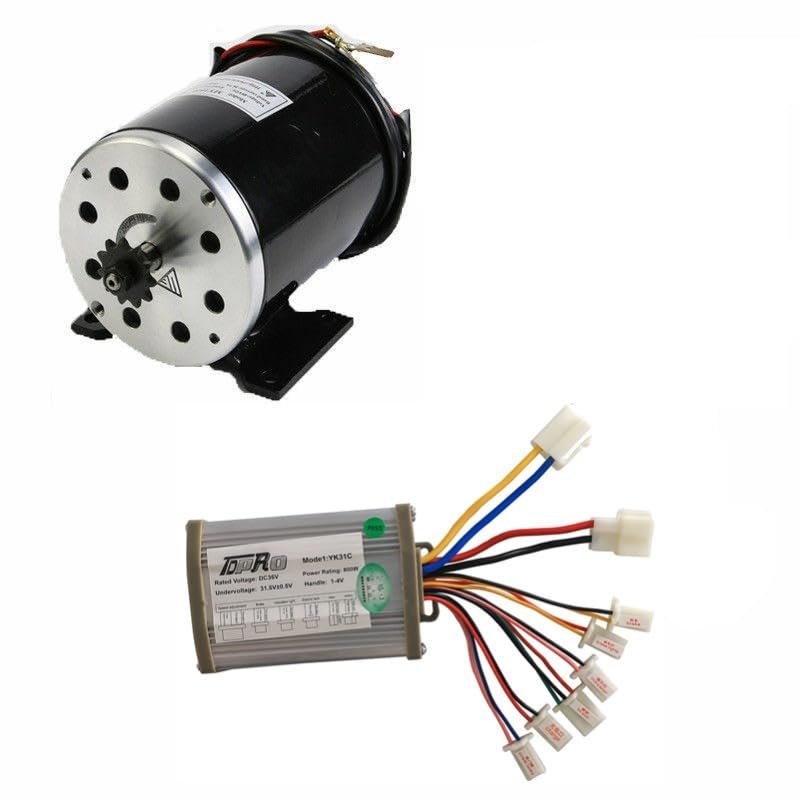

YC Yier 36V 800W Brushed Motor and Speed Controller Set for Electric Scooter Go Kart Bicycle e Bike Tricycle Moped ATV Quad Dirt Bike Razor

Description

• Type: Brushed. Rated voltage: 36V DC. Output: 800W
• 11 Teeth sprocket for #25 chain. Specially good for DIY enthusiasts as it generates high toque and is compatible with #25 chains
• Rating speed rate/rpm 2800rpm. Speed reduction motor /Permanent Magnet Motor - Low speed with large torque
• Used for tricycle , bicycle , E-scooter, EVO scooter ,Extreme scooter
• A perfect replacement for your broken or old one. With base mount model, easy to install and simple to operate.
• Package includes: 1x Motor + 1x Controller

Specifications:
Motor:
Output: 800W
Rated speed: 2750-3045 RPM
Rated voltage: 36V DC
Rated current: 27A
No-load current: 2.6A
Peak efficiency at 36V: 80 percent
Reversible: (w/ polarity swap)
Sprocketfor 25H chain
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Controller:
Rated voltage: 36V DC
Conversion efficency: 95%
Under Voltage Protection: 31.50.5V
Speed regulator (throttle): 1-4 V
Controller Wiring:
This controller has 8 connectors, compatible with many 36V bikes with up to 800W motors
1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)
These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.
