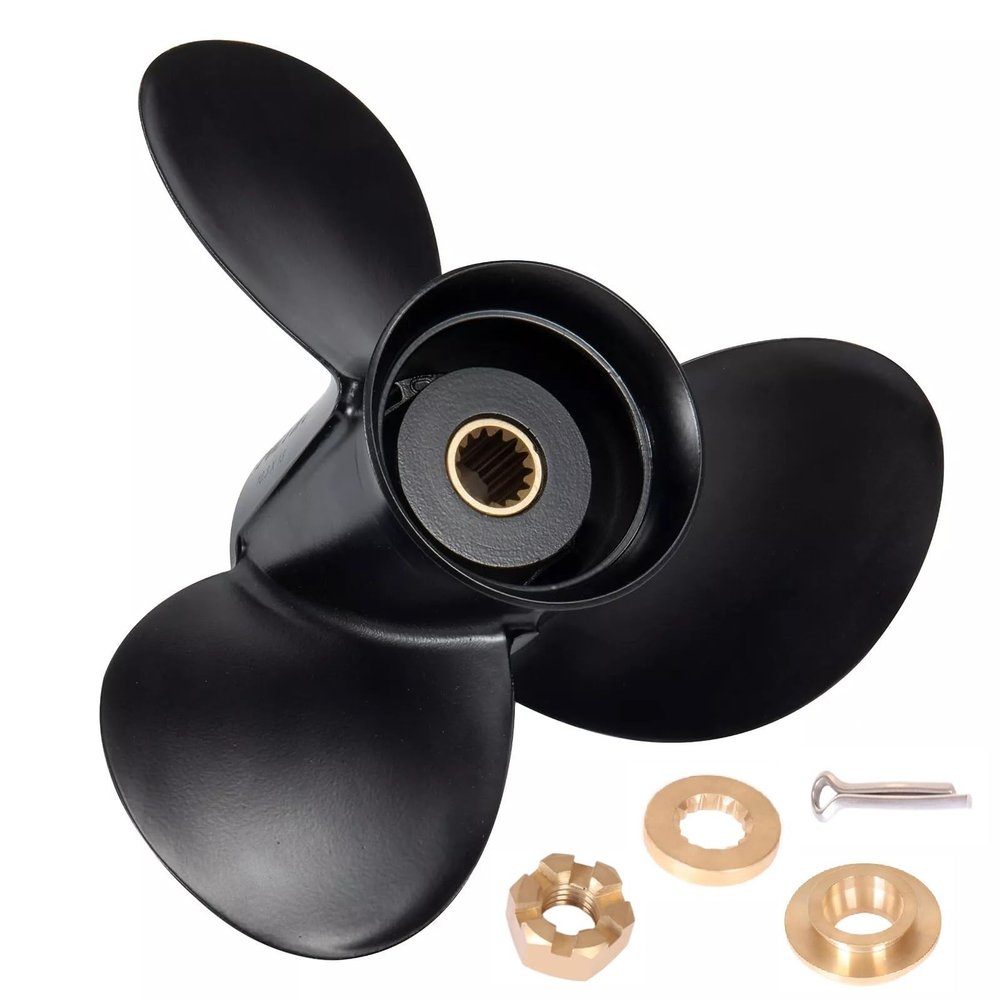

MARKGOO 0778863 Propeller for OMC Johnson Evinrude Outboard 20 25 30 35 HP Boat Motor Engine Parts 3 Blade Aluminum Prop 10.3X13 Pitch RH 14 Spline Tooth with Nut Kit 778863

Description

• Propeller Specification: Diameter 10.3 inches X13 inches Pitch, 3 Blades, Right Hand Rotation, 14 Spline Tooth, Aluminum-alloy, 3" Gearcase.
• Easy to maintain and repair.
• Good overall performance and value.
• Recommended for boats with top speeds less than 50 MPH/ 80 KPH.
• 3 Blade Die-Cast Aluminum.

MARKGOO 0778863 Propeller for OMC Johnson Evinrude Outboard 20 25 30 35 HP Boat Motor Engine Parts 3 Blade Aluminum Prop 10.3X13 Pitch RH 14 Spline Tooth with Nut Kit 778863
OEM Part No.0778863, 0765760, 0386933, 0387636, 0177185, 0175191, 778863, 765760, 386933, 387636, 177185, 175191. it fit outboard Engines 15-35 HP, RH, 3" Gearcase 14 Spline Tooth
Recommended fit Engines less than 250hp, Top speed less than 50 mph / 80 kph,
Hardware Kit include Propeller Nut 0319891, Spacer Washer 0323943, Thrust Bushing 0335420 0766478, cotter pin 0320785.
Boat types: Houseboat, Inflatable - Soft Hull, Inshore Fishing, Pontoon.
PROPELLER SPECIFICATION:
Diameter: 10.3 inch
Pitch: 13 inch
Blade: 3
Tooth: 14 Spline Tooth
Rotation: Right
Material: Alloy-Aluminum.
VERY IMPORTANT: Kindly please check your boat handbook and find out correct size for your propeller. we suggest you to confirm your own propeller's diameter, pitch, rotation, OEM number, horsepower before the purchase.
APPLICATION: Fit Evinrude Johnson outboard Engines 3" Gearcase,15-35 HP
Evinrude Johnson 15 HP 2011 & UP
Evinrude Johnson 20 HP 1985 & UP
Evinrude Johnson 25 HP 1977 & UP
Evinrude Johnson 30 HP 1984 & UP
Evinrude Johnson 35 HP 1976 & UP
INSTALLATION INSTRUCTION:
Just remove prop locknut, locknut retainer and forward thrust washer. Then Install forward thrust washer, Insert drive sleeve into prop, Slide prop on prop shaft, Insert drive sleeve adapter, Slide locknut retainer, Install prop locknut, Insert sth to prevent spinning.
