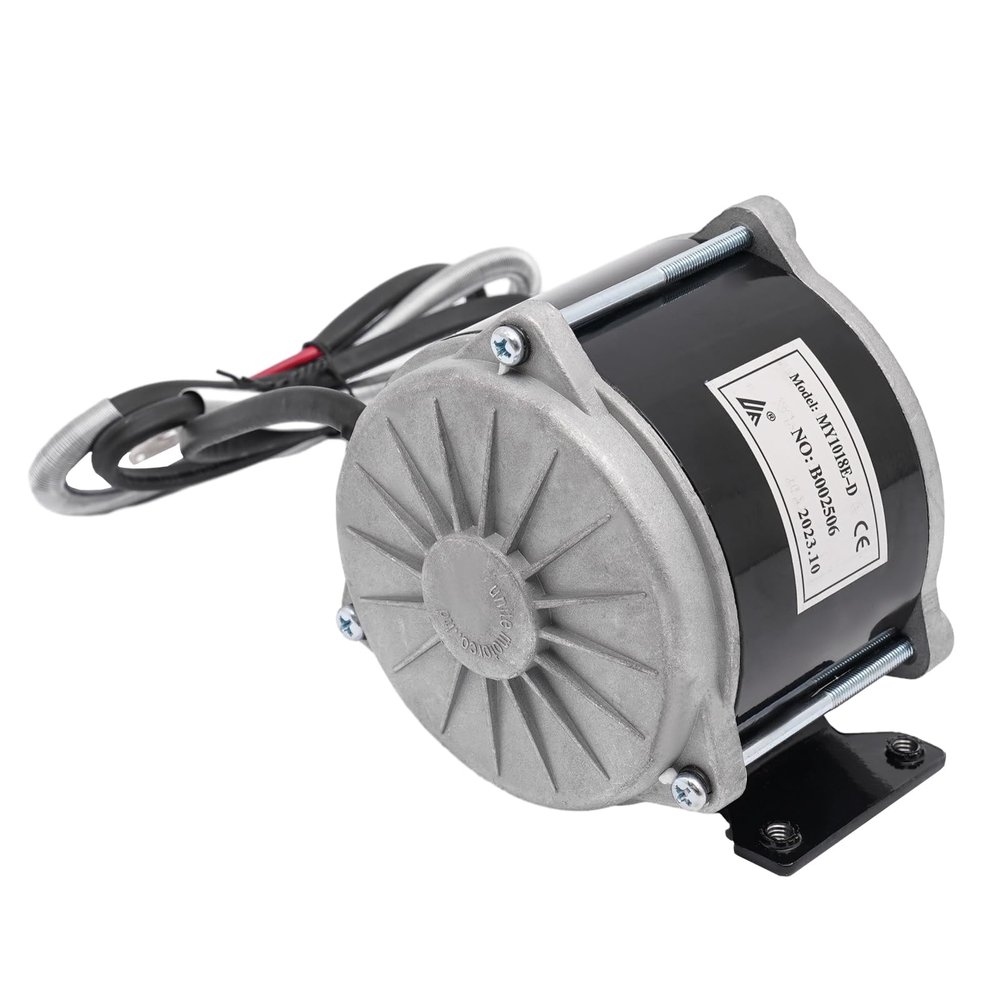

Gear Reduction Electric Motor, 24V 500W 1700RPM DC Electric Bicycle Brushed Motor Re for Electric Bicycle Scooter Bikes

Description

• ParameterRated Voltage: 24V, Rated Speed: 1700RPM, No-load Current: 2A, Rated Power: 500W
• CapacityMotor Load Capacity: About 200kg/440.9lbs, Rated Efficiency: 78%, Protection Level: IP44, Rated Torque: 1.98NM
• Reversible MotorBy connecting the power cord of the motor in the forward/reverse direction, the motor can be adjusted to rotate clockwise or counterclockwise, increasing its flexibility and extending its service life.
• Easy to AssembleSimple structure and predrilled holes, easy to install.
• ApplicationSuitable for motorized bicycles, mopeds, bikes, pocket bikes, electric dirt bikes, scooters, e-bikes, electric vehicles, electric vehicle modifications, and several small mechanical equipment.

Specifications
Model: MY1018E-D
Material: Iron, Aluminum, Copper
Color: Black, Silver
Style: Modern
Shape: Round
Assembly Required: No
Rated Voltage: 24V
Rated Speed: 1700RPM
No-load Current: 2A
Rated Power: 500W
Rated Efficiency: 78%
Protection Level: IP44
Rated Torque: 1.98NM
Insulation Level: F
Motor Load Capacity: About 200kg/440.9lbs
Gross Weight: 2.8kg/6.2lbs
Power Cable Length: 1m/3.3ft
Product Size: 10.9*4.2cm/4.3*1.65in
Package Size: 18.5*18.5*14.5cm/7.3*7.3*5.7in

Package Included
1 X Gear Reduction Electric Motor

Notes
1.Please note that if you need to adjust the speed, you need to use it with a controller (not included).
2.Please note that this product does not contain a cooling fan, please do not use it in a small confined space.
