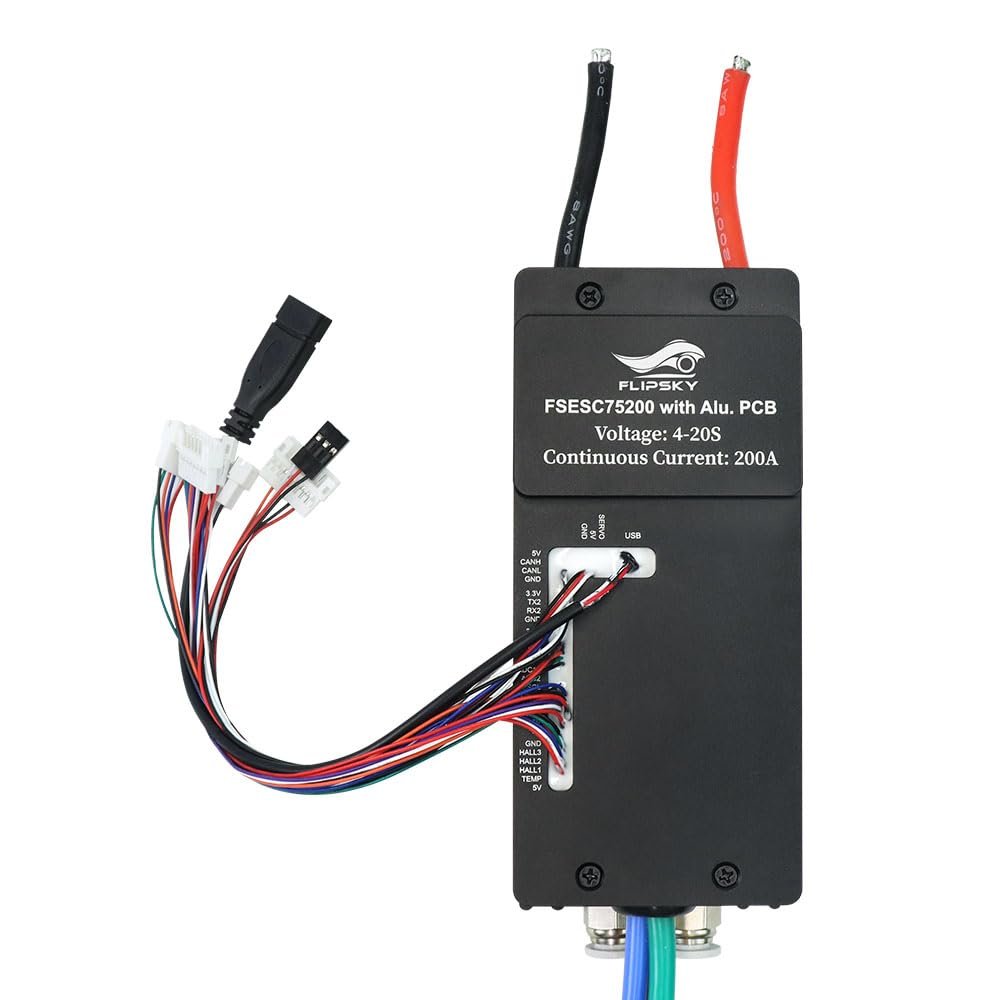

FLIPSKY 75200 FOC 84V High Current Single ESC with Water Cooling Enclosure for Electric Skateboard/Scooter/Ebike Speed Controller

Description

• Use aluminum alloy case for better heat dissipation effect,which makes ESC more durable.
• Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A
• Voltage: 14-84V (safe for 4-20S).Support various control modes: Current / Duty cycle / Speed / PID control modes.
• Communication Ports: USB, CAN, UART, SPI, IIC Supported Sensors: ABI, HALL, AS5047, AS5048A Input Source Support: PPM, ADC, NRF, UART
• Warm tips: It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

Specs: Firmware: 5.2, supports firmware upgrade Voltage: 14-84V (safe for 4-20S) Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A BEC: 5V@1A Support Modes: DC, BLDC, FOC (sinusoidal) ERPM: 150000 Communication Ports: USB, CAN, UART, SPI, IIC Supported Sensors: ABI, HALL, AS5047, AS5048A Input Source Support: PPM, ADC, NRF, UART Supported Sensorless: Yes Regenerative capacity: Yes Programmable via VESC_TOOL: Yes 75200 Size:130x67.7x40.1mm(Including alu. case) Motor/power wire size: 8 AWG

Features:
1.Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.
2.Support various control modes: Current / Duty cycle / Speed / PID control modes.
3.Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
4.CPU:32F405 with frequency 168MHz
5.Aluminum PCB with good heat dissipation to expand life span.
6.Two COMM ports: UART bluetooth module, screen display or remote controller supportable.
