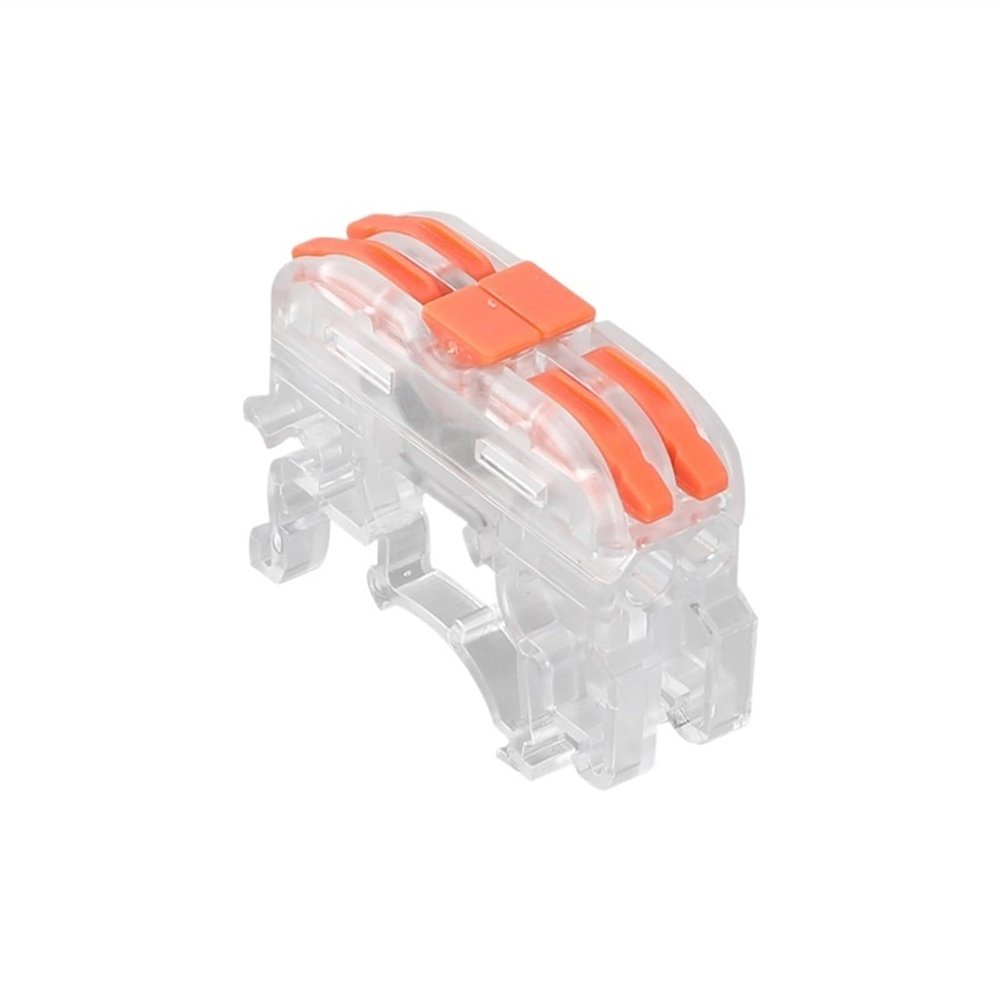

DWFSKZKV 222-211/212/213 Fast Connectors with DIN Rail Feet 2.5mm Cable 2/4/6 Pins Mounting on NS35 Compact Splicing Wring Terminal Block (Color : 222-212-transparent, Size : 50 Pcs)

Description

• 222-211/212/213 Fast Connectors With DIN Rail Feet 2.5mm Cable 2/4/6 Pins Mounting on NS35 Compact Splicing Wring Terminal Block

TECHNICALPARAMETERS
Model No.
222-211
Color
Grey/Orange
Length/Height/Wide(mm)
L43/W8/H31mm
Connection method
Cage Clamp
Material
Flame Nylon PA66, also available in PC material
Rated Voltage/Current
400V/32A
Cross section, solidCable/Conductor Size
0.08-2.5mm/28-12 AWG
Cross section, soft Cable/Conductor Size
0.08-4 mm/28-12 AWG
Strip length
9 -10 mm / 0.35 -0.39 in
Standard
IEC 60947-7-1
Packing Detail
5.75g/pc, 100PCS/BOX,3200PCS/CTN
Certification
CE/RoHS/CQC/ISO 9001
Model No.
222-212
Color
Grey/Orange, yellow and blue
Length/Height/Wide(mm)
L43/W13/H31mm
Connection method
Cage Clamp
Material
Flame Nylon PA66, also available in PC material
Rated Voltage/Current
400V/32A
Cross section, solidCable/Conductor Size
0.08-2.5mm/28-12 AWG
Cross section, soft Cable/Conductor Size
0.08-4 mm/28-12 AWG
Strip length
9 -10 mm / 0.35 -0.39 in
Standard
IEC 60947-7-1
Packing Detail
8.35g/pc, 50PCS/BOX,1600PCS/CTN
Certification
CE/RoHS/CQC/ISO 9001
Model No.
222-213
Color
Grey/Orange, yellow, blue.
Length/Height/Wide(mm)
L43/W18/H31mm
Connection method
Cage Clamp
Material
Flame Nylon PA66, also available in PC material
Rated Voltage/Current
400V/32A
Cross section, solidCable/Conductor Size
0.08-2.5mm/28-12 AWG
Cross section, soft Cable/Conductor Size
0.08-4 mm/28-12 AWG
Strip length
9 -10 mm / 0.35 -0.39 in
Standard
IEC 60947-7-1
Packing Detail
11.4g/pc, 40PCS/BOX,1280PCS/CTN
Certification
CE/RoHS/CQC/ISO 9001
