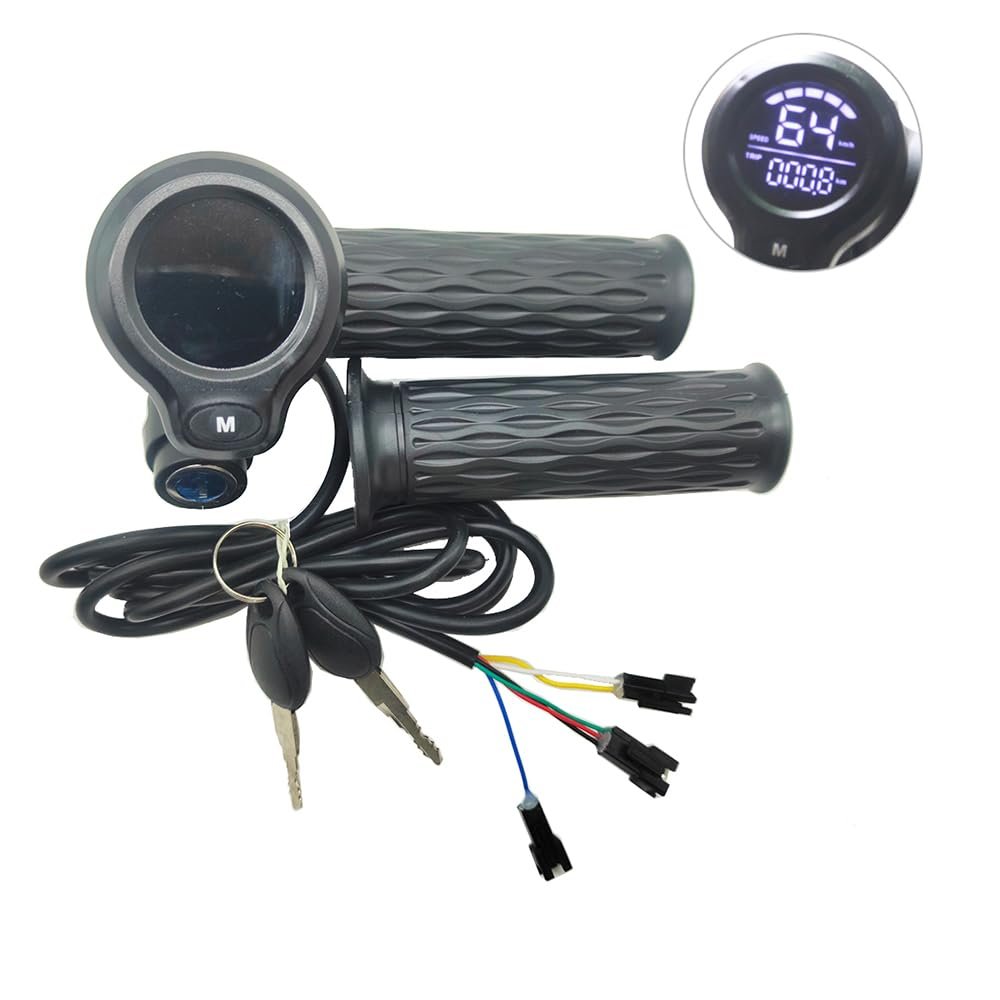

Bike Throttle Grip, 36V 48V 60V 72V Electric Bicycle Scooter Twist Throttle Grips with LCD Display Screen Handle with Key Lock

Description

• 36V 48V 60V 72V electric bike scooter throttle

1.key lockalso call elec door lock or electric lock
2.throttlenormal need red to red,green to greenblack to black connect to controller throttle
3.hall speedcan connect to controller hall wires or controller Instrument line
if throttle interface not match your controller interfaceneed buyer cut off interface to connectthanks

throttle LCD display can display real-time speed and mileage.The hole diameter is 22mm, and the handle is designed to prevent slipping, making it very durable.

how to connect this throttle?
1.phase voltage speed is connect to controller Pointer meter or phase voltage speed
2.key lock is connect to controller key lock or name call electric lock,electric door lock
3.throttle is connect to controller throttle wires,need color to color connect

if throttle interface not match controller interfaceneed cut off interface to connect.this need buyer DIY it.

Guidelines for setting LCD instrument parameters:

Press and hold the M key to turn on the power and enter the parameter setting mode:
"Short press the M key to quickly switch to the upper row of P characters,
first displaying P01 in descending order; * Long press the M key for more than 3 seconds,
the lower row of numbers will flash, and then short press the M key to change the parameters,
Hold for 5 seconds to save the current parameters.

Code:

P01 can be set to 36V, 48V, 60V, 72V voltage, default is 48V

P02 speed multiplier, 10-150, default value 100

P03 mileage multiplier, 90-130, default value 100

P04 can set the speed measurement mode, 0001 represents phase voltage speed test, and 0002 represents Hall speed test

P05 can set wheel diameters of 8,10,12,14,16,18,20,22,24,26,28,29, with a default of 14 inches

P06 can set the number of magnetic steels from 1 to 50, with a default of 30
P07 can set the battery voltage display coefficient to 95-105, with a default value of 100
P08 can be set with three gear functions: P08=0 no gear, P08=1 defaults to first gear, P08=2 defaults to second gear, and P08=3 defaults to third gear Default is 0

P09 mileage reset: After entering the parameters, long press for 3 seconds, the mileage will flash, and short press 10 times

P10 kilometers and miles switch, 0001 represents kilometers, 0002 represents miles
