Brushless Motor Kit, 3000W 72V Brushless DC Motor with 24 Mosfet 43A Controller for Electric Scooter, E Bike, Motorcycle DIY Conversion

Description

• Strong Load Weight: It has a strong load weight (220.5-440.9lbs). Whether a professional athlete or a leisure sports enthusiast, it can provide you with a thrilling cycling experience.
• Impressive Performance: It adopts high power (3KW) that can provide a rated speed of 4900 rpm and a 6000 rpm no-load speed, as if weaving through a time and space tunnel intertwined with technology and speed, ideally interpreting the aesthetic of speed.
• Safe to Use: It has an IP33 protection level, an E-class insulation level, and a design of locking power. Even in outdoor activities with slightly harsh environments, it can provide higher safety for you.
• Built to Last: The motor is made of high-quality aluminum casing with pure copper coils, which has high-temperature resistance, low noise, anti-corrosion, guaranteeing a long service life.
• Free Speed Control: The package contains a foot pedal accelerator and a set of forward/backward handlebars. You can choose any one as your speed control throttle, which can help you achieve free speed control and meet your different needs.

Description
Do you want every ride to become a pleasure? This brushless motor kit will take you to a whole new level. Its 3KW strong power combined with a high motor efficiency ( 80%) makes riding easier and longer. Whether you are a beginner or an experienced rider, this motor kit is your ideal choice. Come and buy this excellent kit and enjoy the fun of exploration and challenges!

Application
It is suitable for scooters, electric motorcycles, dune buggies, go-karts, modified bicycles, mechanical equipment, etc.

Specification
Material: Aluminum, Rubber
Brushless Motor Type: Pure Copper Motor
Speed Gears: Low / Medium / High (After Connecting Three-speed Line)
Motor Voltage: 48-72V
Motor Efficiency: 80
Power: 3KW
Assembly Required: Yes
No-load Current: 8.8A
Rated Current: 43A
No-load Speed: 6000rpm
Rated Speed: 4900rpm
Rated Torque: 5.4 N.m
Protection Grade: IP33
Insulation Grade: E
Load Weight: Approx. 100-200kg/220.5-440.9lbs
Foot Pedal Accelerator Size: 5.5*17.5*12.8cm/2.2*6.9*5in
Controller Size: 21.6*8.3*4.4cm/8.5*3.3*1.7in
Leg Distance: 12cm/4.7in
Leg Height: 1.5cm/0.6in
Interface Length: 3cm/1.2in
Motor Size(*L): 10.2*13.2cm/4*5.2in
Package Size: 39*35*25.5cm/15.4*13.8*10in
Net Weight: 6.45kg/14.2lbs
Gross Weight: 7.7kg/17lbs

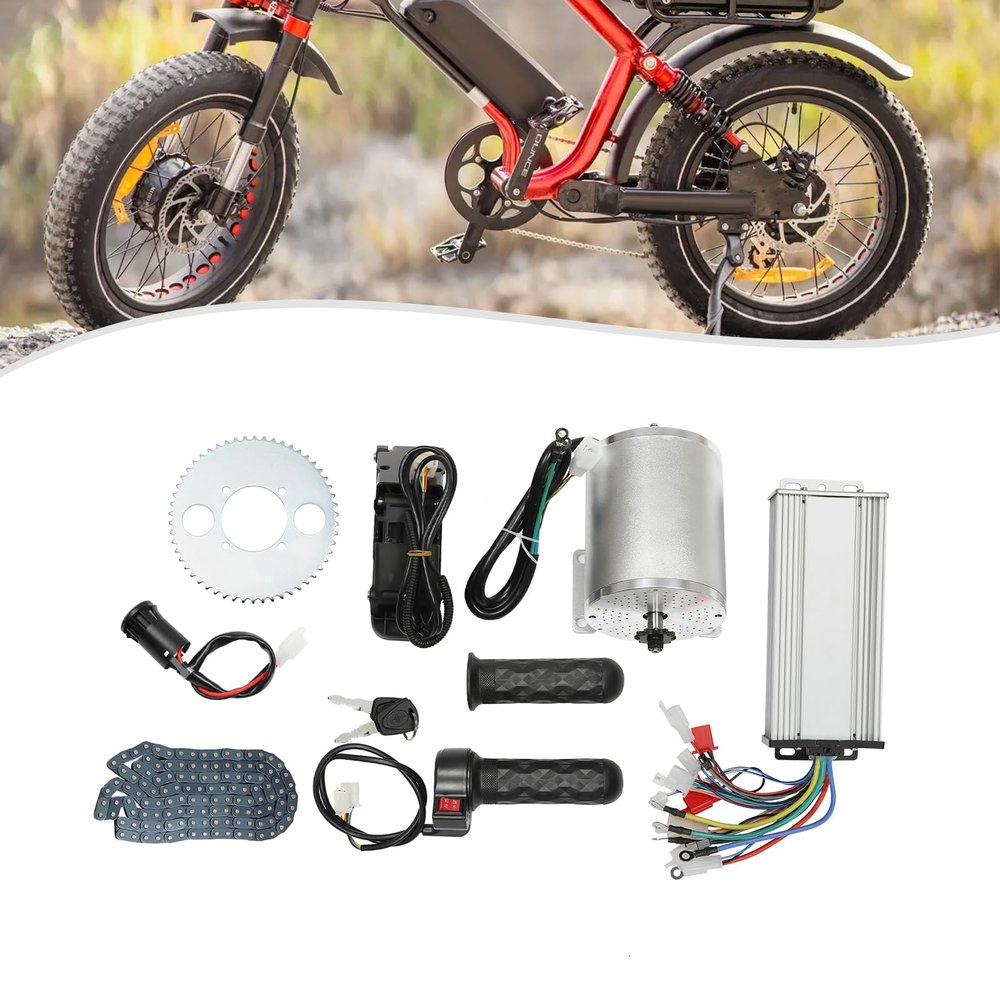

Package Included
1* Brushless Motor
1* Controller
1* Foot Pedal Accelerator
1* Electric Door Lock
1* Chain
1* Chain Disk
1 Pair* Lock Keys
1 Set* Forward/Backward Handlebars
Other Accessories for Installation

Notes
1. Please note that the motor speed will be determined based on the load weight and other factors.
2. When connecting the controller to the wires, please make sure to connect the correct color to it. Otherwise, the controller may be damaged.
3. Please do not let the motor run in reverse for a long time, as this will shorten its service life.
4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
